product name:

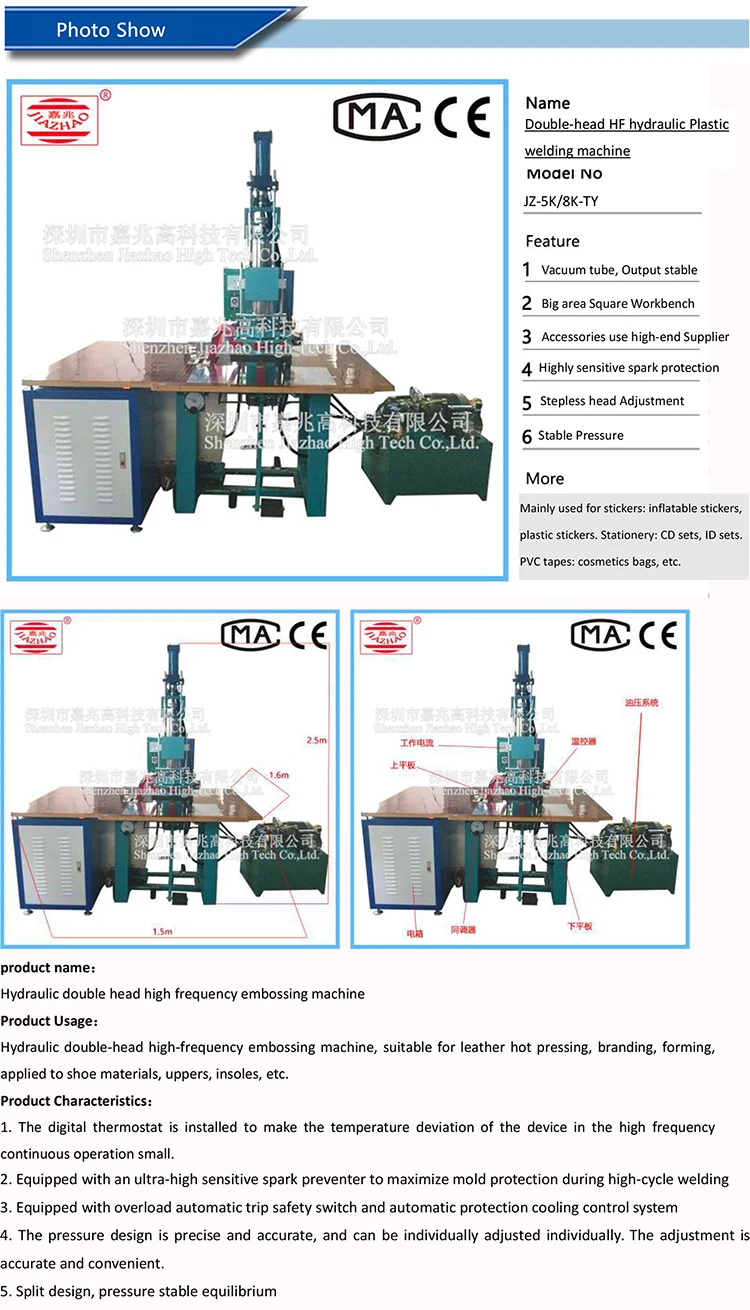

Hydraulic double head high frequency embossing machine
Product Usage:
Hydraulic double-head high-frequency embossing machine, suitable for thicker and thicker leather hot pressing, branding, forming, applied to shoe materials (shoes, soles, insoles, etc.), trademark LOGO, taro, handbags, leather cases, Computer bag, etc.
Features:
1.The digital thermostat is installed to make the temperature deviation of the equipment in the continuous operation of high frequency small, and it is suitable for welding of materials with narrow processing temperature range..
2.Equipped with an ultra-high sensitive spark preventer to maximize mold protection during high-cycle welding;
3.Equipped with overload automatic trip safety switch and automatic protection cooling control system! Keep the machine in normal and safe use during operation;
4.The pressure design is precise and accurate, and can be individually adjusted, and the adjustment is accurate and convenient. The machine is equipped with a hydraulic pressure limit switch, which can adjust the pressure safety upper limit to protect the machine safety and damage the mold..
5.Split design, pressure stable equilibrium.
Parameter configuration
machine type | JZ-5K-TR(Y) | JZ-8K-TR(Y) | JZ-10K-TR(Y) |
Power | 5KW | 8KW | 10KW |
Oscillating tube | 7T85RB | 7T69RB | E3069RB |
pressure | 5~18T | 10~18T | 10~20T |
Electrode spacing | 0~170mm | ||
Weld head stroke | 50mm | ||
Upper plate size | 250*400mm | ||
Lower plate size | 350*500mm | ||
voltage | 380V 50/60HZ | ||
frequency | 27.12MHz | ||
input power | 8KVA | 15KVA | 18KVA |
Rectifier | Helium diode | ||
Temperature control range | 0~200°C | ||
Station | Second station | ||
Operation method | Oil pressure / foot type | ||
Welding time | 0~10Second adjustable | ||
Dimensions (LWH) | 1.5m*1.6m*2.5m | 1.5m*1.6m*2.5m | 1.5m*1.6m*2.5m |
We use standard sea freight wooden box to pack the machine and we have many years cooperation with our shipping agent. Our factory is very near to the ports, so the delivery of goods is very fast. Packaging Details:Standard exported wooden package. Delivery Detail:7 to 30 working days,depends on quantity and production.
Q: Are you trading company or manufacturer ?
A: Yes.We're factory. All machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time ?
A: Generally it takes 5-10 days to deliver you if the goods are in stock Or it is 15-20 days if the goods are not in stock. It is according to quantity.
Q: What about your warranty ?
A: Our warranty is 1 year, all machine part can be replaced for free within 1 year if broken (not including man made)
Q: What'r your term of payment ?
A: Payment <=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippemet.
Q: Do you provide sample for free ?
A: Yes, we could provide the sample for free.
Q: If we have a problem with installing machine, how to solve it ?
A: We have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.
Q: Is there any ensurance to guarantee my order from your company ?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.
The machine will have one year warranty. During the warranty year if any part of machine is broken not including by man made. We will replace the new one for you for free charge. The warranty will bagin after the machine send out we received the B/L
