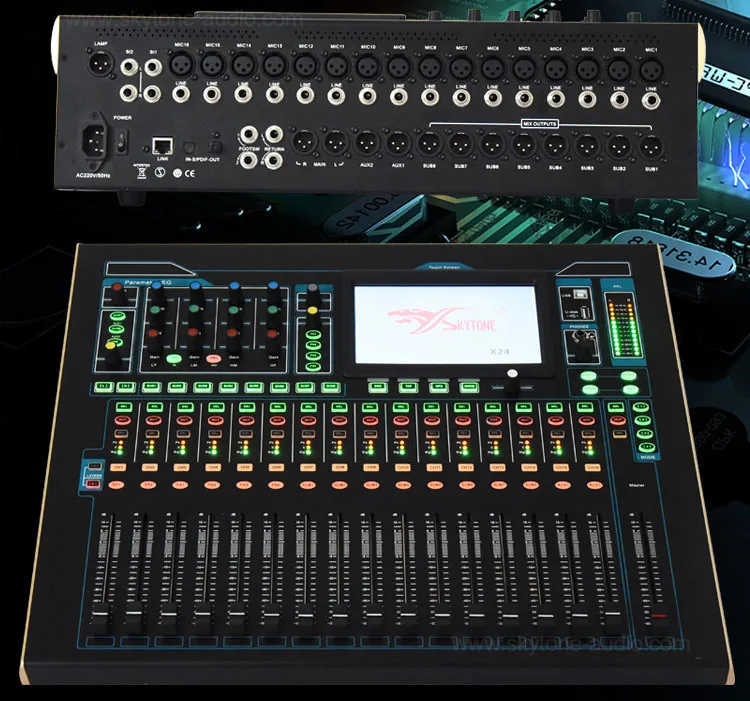

X24 professional 24 channel audio mixer digital
Digital audio mixer
Mixer digital console
Digital mixer

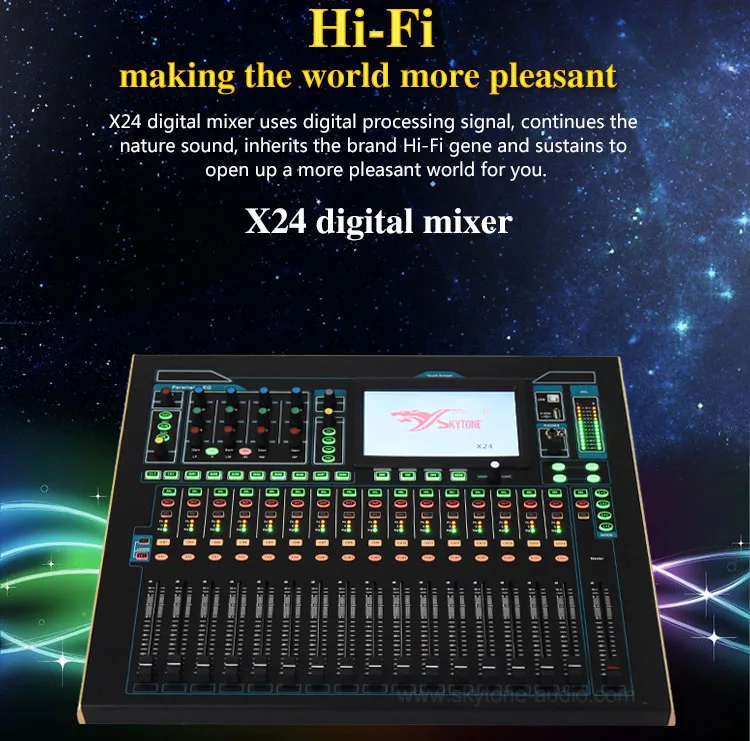

**** Hi-Fi, making the world more pleasant****
-------------------------------------------
X24 digital mixer uses digital processing signal, continues the nature sound, inherits the brand Hi-Fi gene and sustains to open up a more pleasant world for you.

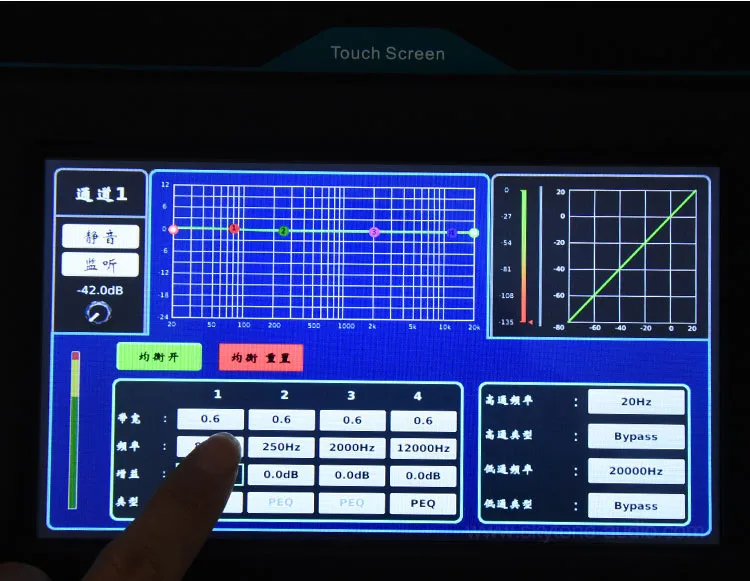

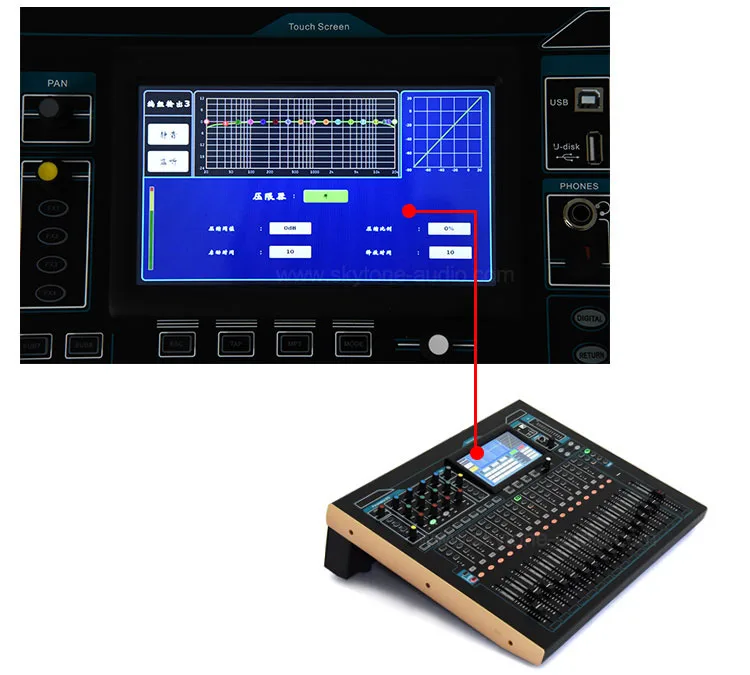

**** 7” 800×480 True Colour Touchscreen****
-------------------------------------------
X24 matching with 1600 million colour 7” 800×480 True Colour Touchscreen and its dedicated digital encoder form the heart of X24’s interface, providing super-fast access to all setting and parameters. Amazing appearance extending your vision and imagination.

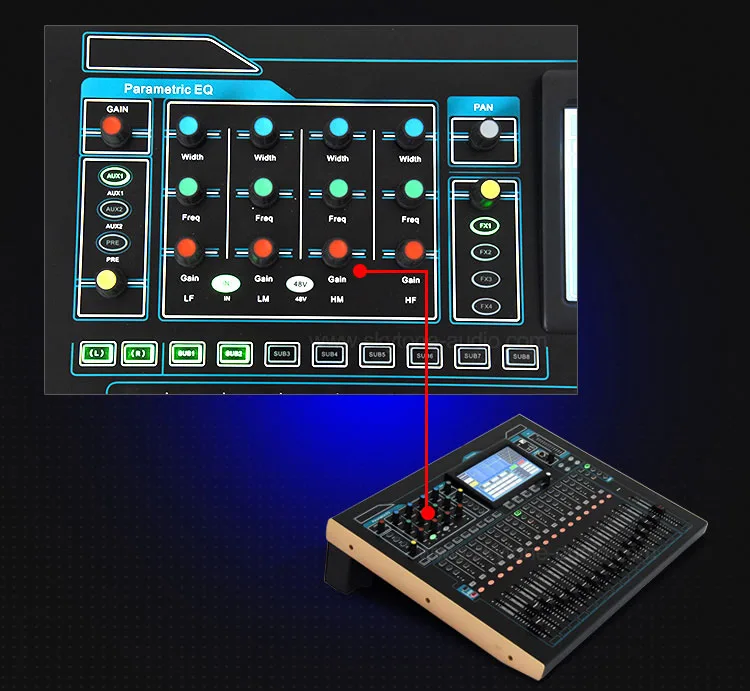

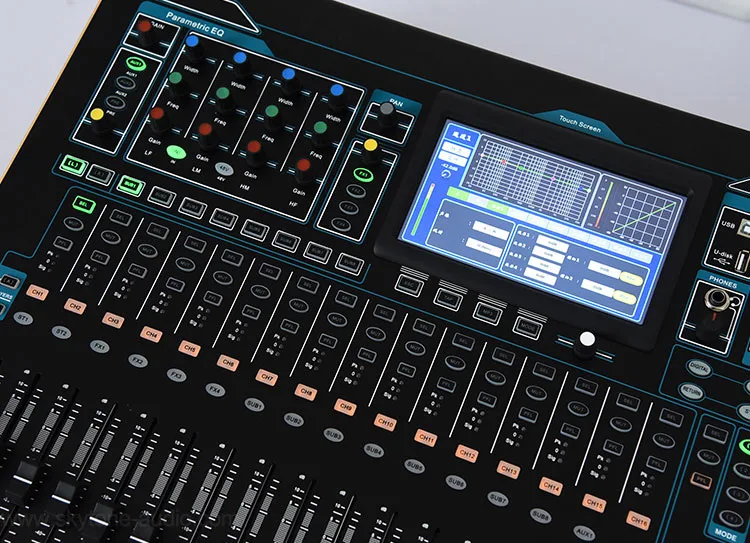

**** Massive EQ processing function****
-------------------------------------------
X24 having massive EQ processing function, built-in 9 Graphic EQ(1-16 input option), 4-band input PEQ, 15-band output PEQ.
**** Strong Marshalling output****
-------------------------------------------
X24 coming with 8 SUB, 2 AUX, each channel set 15-Band fully Parametric output, 20-20kHz,+/-12dB.
**** Strong crossover function****
-------------------------------------------
X24 digital mixer with strong crossover function, each channel output can set HPF and LPF. You save a crossover if own it.

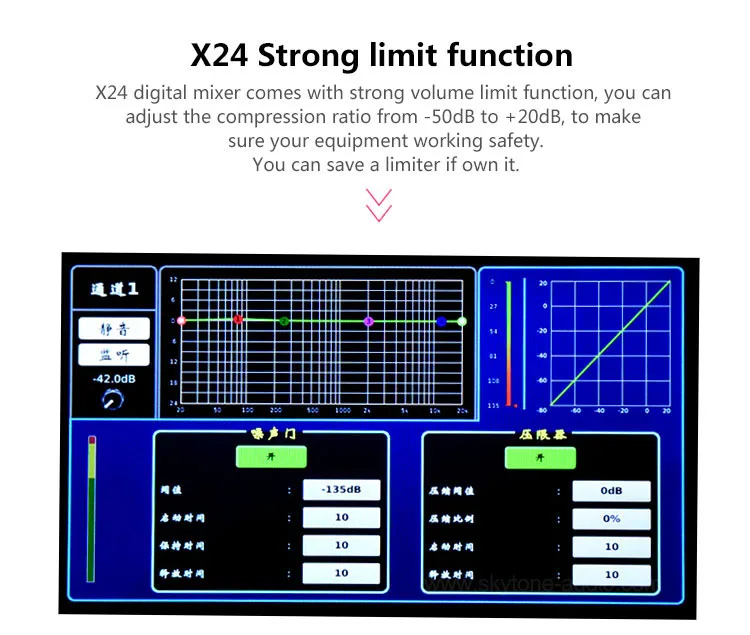

**** Strong limit function****
-------------------------------------------
X24 digital mixer comes with strong volume limit function, you can adjust the compression ratio from -50dB to +20dB, to make sure your equipment working safety.
You can save a limiter if own it.
**** Top recall****
-------------------------------------------
True digital mixing is about being able to save and recall Scenes (snapshots) at the press of a button. X24 has 4 Quick scene recall mode, 20 Scene memories.

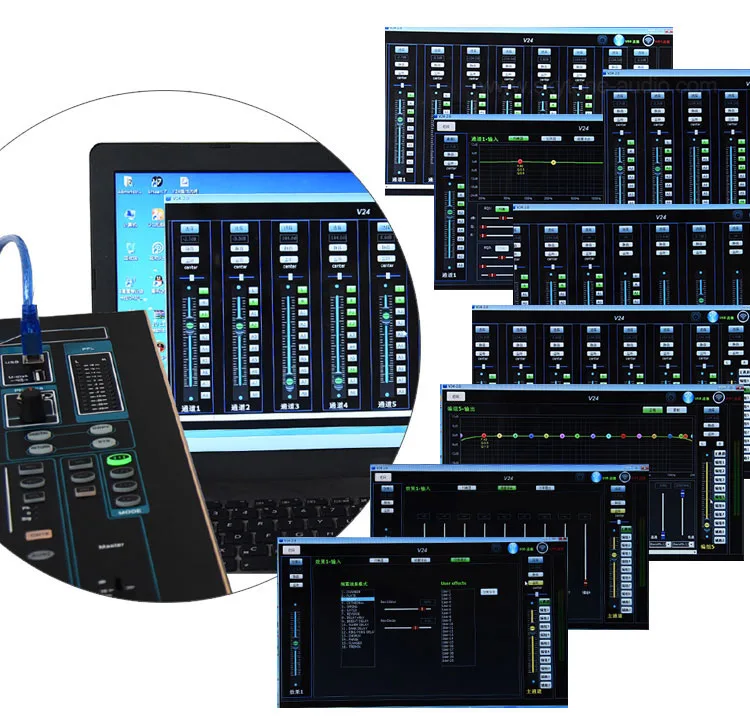

**** Strong network control****
-------------------------------------------
X24 digital mixer comes with LINUX operating system, and provides control software (IOS system, WINDOWS system) which can control the machine through USB cable, and can also use wireless IPAD to control the equipment through the network (To realize wireless network control, the router network cable must be connected with the mixer.)

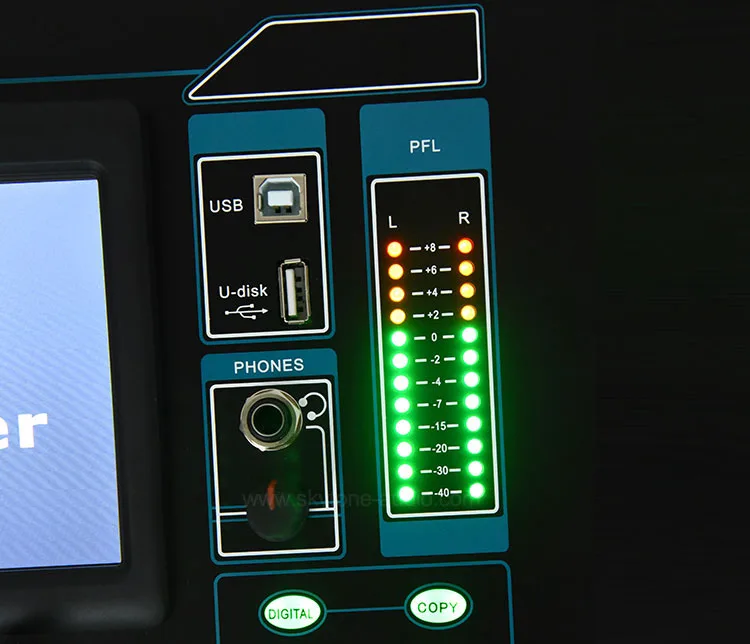

****Multi-fuctional USB & U-disk storage****
-------------------------------------------
USB can be used as a sound card input, and can also be conencted to PC interface.
**** Fascinating digital effects****
-------------------------------------------
The effects of analog mixer was unsatisfied in the past. X24 digital mixer built-in 4 DSP effector, which accurately adjust the ideal reverb and delay effects of the vocal microphone, Beyond your expectations.

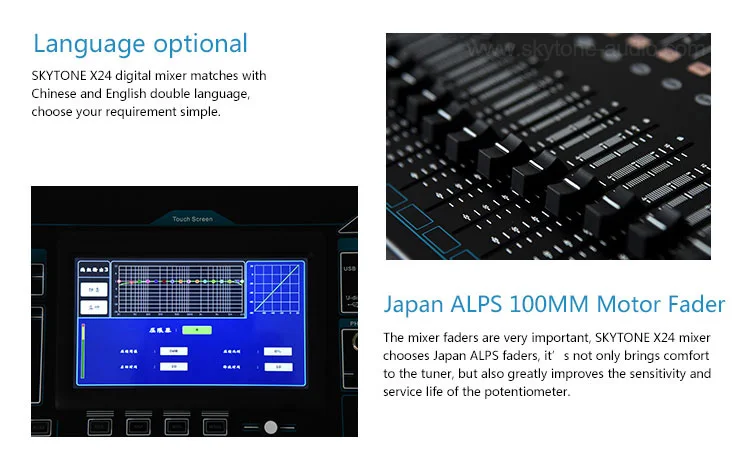

**** Language optional&Japan ALPS 100MM Motor Fader****
-------------------------------------------
SKYTONE X24 digital mixer matches with Chinese and English double language, choose your requirement simple.
The mixer faders are very important, SKYTONE X24 mixer chooses Japan ALPS faders, it’s not only brings comfort to the tuner, but also greatly improves the sensitivity and service life of the potentiometer.
***X24 digital mixer features***
1: 24 channels signal input(16 MIC, 2 group stereo,1group return, sound card/MP3+ S/PDIF)
2:Input processing – Input Gain Preamp, HPF, 4-Band PEQ, Compressor,Gate, Delay, PAN
3:MIC input digital gain adjustable
4:+48V Phantom(MIC separate ON/OFF)
5:Built-in 3 Graphic EQ(1-16 input option)
6:IN/OUT EQ ON/OFF
7:Stereo Return Input
8:Quick copy
9:Multi menu of each channel, MUT,PFL
10:100MM Motorized faders, Signal lamp, Peak lamp(17 faders)
11:12 signal output (Main stereo, 8 group, 2 AUX)
12:Output processing – HPF,15-Band PEQ, Compressor, Delay, Phase
13:AUX output(PRE)
14:Multi-track multi-mode digital recording function
15:3 colors double layers 12 Band level indicator lamp
16:Built-in Sound card( MP3,PCS play music directly)
17:4 Quick scene recall mode, 20 Scene memories
18:User parameter save and transfer(Management at PC)
19:Built-in 4 DSP effector
20:7" (800*480 pixel )HD colour touchscreen
21:FX Foot switch interface
22:S/PDIF IN/OUT
23:Multiple operating systems(IOS, WINDOWS), Language
24:Line network adjustable (Or external router)
25:User assignable Custom Layer, Output mixed editing function
26:Parameter Lock function
***X24 digital mixer specification***
| Specification | X24 digital mixer |
| Mic in /Line in 1-12 balance XLR Input sensitivity(XLR/TRS) | -60 to +10db / -50 to +20db |
| Analogue Gain | -32 to +10dB, 0.7dB step |
| Max Input Level (XLR/TRS) | +19db/+29db |
| Input impedance(XLR/TRS) | >5kΩ / >10 kΩ |
| THD+N, Unity gain 0db | 0.0005%-89db(20- 20KHZ,Direct out@0db 1KHZ) |
| THD+N Mid gain +30db | 0.001-75db(20-20KHZ,Direct out@0db 1KHZ) |
| Output Voltage | 4V MAX |
| Earphone output | 7V 220 ohms |
| Input 4-Band fully parametric | 20-20kHz, +/-12dB , Q=0.3~15.0 |
| Band 1 | Selectable LF Shelving, PEQ |
| Band 2 | PEQ |
| Band 3 | PEQ |
| Band 4 | Selectable HF Shelving, PEQ |
| Input independent delay | Max 10ms |
| Output 15-Band fully parametric | 20-20kHz, +/-12dB,Q=0.3~15.0 |
| Output independent delay | Max 30ms |
| Threshold / Ratio | -50dBu to 6dBu / 1:1 to infinity |
| Attack / Release | 1ms – 127ms / 1ms - 127ms |
| Insert 9-Band EQ | 63,125,250,500,1k,2k,4k,8k,16k |
| Gain | +/-12dB |
| Control | |
| Faders | 100mm motorized |
| Network | Fast Ethernet (100 Mb/s) ports can be connected to a computer using CAT5 cables, used to control the mixer parameters via TCP/IP or connect to the wireless router (access point) to carry on the scene mixing control via X24 APP on the iPad. The Link indicator light flickers means network activity. |
***X24 digital mixer package***
Carton case
Flight case
Welcome to inquiry.
