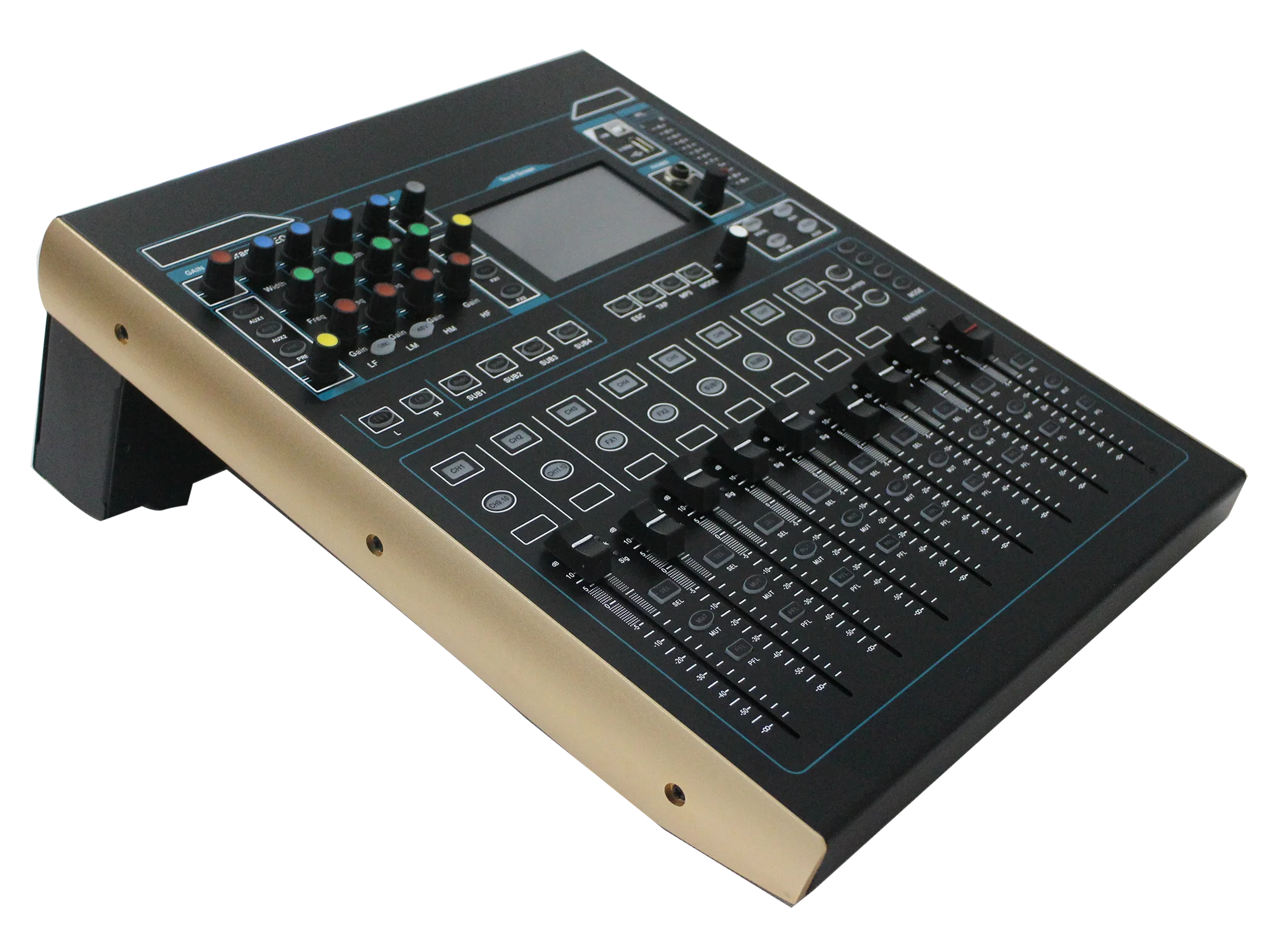

12-channel digital audio mixer
China manufacturer OEM 8-channel DIGITAL audio mixer DB-8D ( 6 MONO,1 STEREO ,1 RETURN )
- DB series ,full digital control mixer 12, 16 , 20, 24 channels model and customized model optional
- With motorized faders, large display, USB interface, professional digital interface(SOUND CAR ,SPDiF)
- Input and output channels with independent PEQ, APP control and other advanced features
- With studio recording quality sound, a variety of effects and dynamic processing, that enable entire audio system to run more simply .
| Model | DB-12DL |
| channels Input | 12 channels |
| 8 MIC, 2 stereo | |
| sound card, /MP3+ fiber | |
| Numbers of motorized fadders | 9 Motorized fadders (100mm) |
| Input processing | Input gain adjustment (electronic gain), pre amplifier, high and low pass filter, 4 segment parameter equalization, compressor, noise gate, delay, input channel sound balance adjustment |
| MIC / line Input | 1-8 balance XLR jack |
| Input sensitivity (XLR/TRS) | -60 ~+10db /-50~ +20db |
| Electronic gain | -42 ~ +10db, 0.7 steps |
| Maximum input level (XLR/TRS) | +19db/+29db |
| Input impedance (XLR/TRS) | >5k / >10 K |
| THD+N uniform gain state 0db | 0.0005%-89db (20 -20KHZ, direct output @0db 1KHZ) |
| THD+N medium gain +30db | 0.001-75db (20- 20KHZ, direct output @0db 1KHZ) |
| Output processing | high and low pass filter, 15 segment parameter balance, compressor, delay, phase |
| Output voltage | 4V MAX |
| Headphone output | 7V 220 Euro |
| Input 4 segment full parameter equalization | 20-20kHz, +/-12db, Q value 0.3~15.0 |
| Frequency band 1 | selectable Lshelf, PEQ |
| Frequency band 2 | PEQ |
| Frequency band 3 | PEQ |
| Frequency band 4 | selectable Hshelf, PEQ |
| Input independent delay | maximum 10ms |
| Output 15 segment full parameter Equalization | 20-20kHz, +/-12db, Q value 0.3~15.0 |
| Output independent delay | maximum 30ms |
| Threshold / ratio | -50dBu to 6dBu / 1:1~ infinity |
| Impact / release | 1ms -127ms / 1ms -127ms |
| Gain | +/-12dB |
| Motorized faders | 100mm |
Guangzhou Power and Grace Electronic Equipment Co., Ltd ( SPIRIT ) attend to these exhibitions :
1. Guangzhou Entertainment Technology Show ( GET SHOW) ;
2. PRO LIGHT+SOUND ( Frankfurt);
3. China International Exhibition on Pro Audio, Light, Music & Technology (PALM EXPO)
We warmly welcome our regular buyers and new friends meet us in the show ,to establish long-lasting cooperation.
Project
Q1: How long is the lead time?
A1: Generally 2 weeks. If any urgent orders for projects, we will do our best to expedite the process
and deliver faster. But for OEM orders, lead time would be little longer on the first order since we
need more time to communicate the requirements and confirm artworks...
Q2: What's your payment term?
A2: Our policy is at least 30% deposit before production, and 70% paid before shipment date.
Certainly, L/C is also acceptable.
Q3: How do you pack my goods to ensure intactness in the course of transportation?
A3: We always take care of our products and pack them properly!
For example, we use strong cardbox (export carton) stuffing with enough foam bubble and inner boxes
for air shipment or express, and optional pallet packing could be used for LCL sea shipment for better protection.
Q4: What's your delivery term?
A4: We quote and deliver on the term of FOB Huangpu (except EXW term for small orders).
Of course, CIF, C&F or even door to door is acceptable, so we will check and quote shipping cost additionally.
A5: Our warranty is two years, but considering the long transit time to oversea customers, we offer two and half year
warrranty from the production date on serial numbers on. For any failure (non-human induced), we shall provide
you free spare parts and instruction for repair.
