Product Description

ONV-POE31008PLD

The ONV-POE31008PLD series is an unmanaged PoE switch independently developed by ONV. It has 8*10/100M PoE ports and 1*10/100M uplink RJ45 ports. Port 1-8 can support IEEE 802.3af/at standard PoE power supply, and single port PoE power reaches 30W. The maximum PoE output power is 65W.

Port 1-4 can support the watchdog function. When the port communication failure corresponds to the port POE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, video access control, etc. through the network cable, to meet the network environment that needs high-density PoE power supply. It is suitable for hotels, campuses, parks, banks, hospitals, factories, small and medium-sized enterprises form a cost-effective network.

10/100Mbps Access ,Dual RJ45 Ports Uplink

— 9*10/100Base-TX RJ45 ports allow users to flexibly network to meet the networking

— Support non-blocking wire-speed forwarding.

— Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.

Intelligent PoE Power Supply

— 8*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.

— IEEE 802.3af/at PoE standard, without damaging non-PoE devices.

— 8*10/100Base-TX PoE ports can support the watchdog function, real-time detection of data communication status.

Innovative Function

— long-distance transmission and VLAN mode (E): When the switch status is “ON” (default OFF), Port 1-8 rate is 10M/250m transmission, the port physical VLAN isolated, broadcast storm, the transmission distance can up to 250m; solve the problem of poor transmission caused by line aging.

— AI self-healing mode (D): When the switch status is “ON” (default OFF), port 1-8 can support the watchdog function and automatically detects the data communication status in real-time.

— Real-time power and power priority mode (P): When the switch status is "ON" (default OFF), the POE real-time power grading indicator lights up, quickly understanding the power consumption of the host, and enabling the port priority function to ensure the port 1 power output.

Stable and Reliable

— Low power consumption, galvanized steel casing, no fan.

— Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.

— CCC,CE, FCC, RoHS.

— Plug and play, no configuration, simple and convenient.

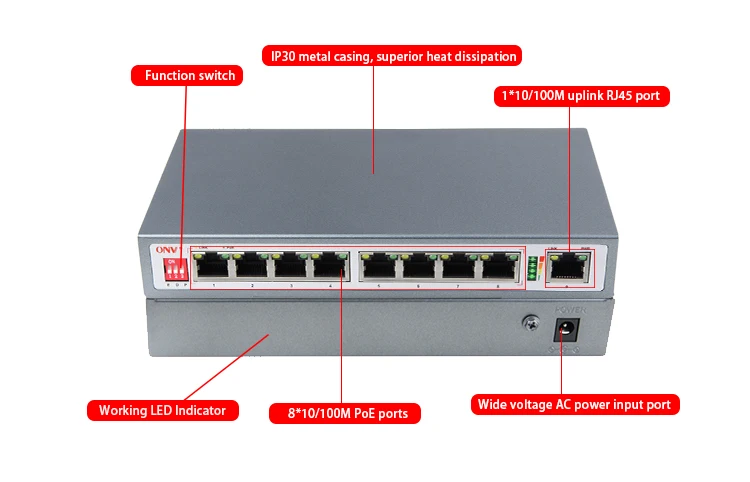

— The user-friendly panel, it can show the device status through the LED indicator of PWR,Link,PoE.

Model	ONV-POE31008PLD	ONV-POE31008PLD-at
Interface Characteristics
Fixed Port	810/100Base-TX PoE ports (Data/Power) 110/100Base-TX Uplink RJ45 ports (Data)
Ethernet Port	Port 1-9 can support 10/100Base-TX automatic detection, full/half Duplex MDI/MDI-X adaptive
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter)
Functional Switch			After opening, port 17-24 support 10M/250 meters long distance transmission.
		E is the "ON" state, port 1-4 can support long-distance transmission 10M/250m and VLAN transmission mode; when "OFF", 100 meters transmission. D is the "ON" state, port 1-4 can support AI self-healing mode; when "OFF", no communication self-healing function. P is the "ON" state, POE outputs total power and priority indication mode; when "OFF", no power indication function.
Chip Parameter
_{Network Protocol}	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x
Forwarding Mode	Store and Forward(Full Wire Speed)
Switching Capacity	1.8Gbps
1.3Forwarding Rate@64byte	1.34Mpps		6.55Mpps
Mac	2K
Buffer Memory	1.25M
LED Indicator	Power: PWR (green); Network: Link（yellow）; POE :PoE (green) Functional switch : EXTEND (green)
PoE & Power
PoE Port	Port 1 to 8 IEEE802.3af/at @ POE		Port 1 to Port 24 IEEE802.3af/at @ POE
Power Supply Pin	Default: 1/2 (+), 3/6 (-) ; Optional 4/5(+), 7/8(-)
Max Power Per Port	30W; IEEE802.3af/at
Total PWR / Input Voltage	110W/ 52VDC	250W/52VDC
Power Supply	External power adaptor AC100~240V 50-60Hz 1A	External power adaptor AC100~240V 50-60Hz 2.2A
Power Consumption	Standby<5W, Full load<110W	Standby<7W, Full load<240W
Physical Parameter
Operation TEMP / Humidity	-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity	-40~+75°C;5%~95% RH Non condensing
Dimension (LWH)	19110529mm		33020444mm
Net /Gross Weight	<0.5kg / <1.5kg		<0.6kg / <1.2kg
Installation	Desktop, Wall-mounted
Certification & Warranty
Lightning protection	Lightning protection: 4KV 8/20us; Protection level: IP30
Certification	CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS
Warranty	3 years, lifelong maintenance.

Model	Description
ONV-POE31008PLD	AI PoE switch with 810/100M PoE port and 110/100M uplink RJ45 port. Port1-8 can support IEEE 802.3af/at PoE standard.Adjust function switch, port 1-8 can support VLAN isolation, 10M/250m transmission, AI self-healing, power indication, and power supply priority, External 110W power supply.
ONV-POE31008PLD	I PoE switch with 810/100M PoE port and 110/100M uplink RJ45 port. Port1-4 can support IEEE 802.3af/at PoE standard.Adjust function switch, port 1-8 can support VLAN isolation, 10M/250m transmission, AI self-healing, power indication, and power supply priority, External 250W power supply.

PACKING LIST	CONTENT	QTY	UNIT
		9-port 10/100M AI PoE switch	1	SET
		AC Power Cable and Power Adapter	1	PC
		Mounting Kits(Hanging Ear)	1	SET
		User Guide	1	PC
		Warranty Card	1	PC
