CPU | AMD Socket AM5 for AMD Ryzen™ 7000 Series |
Desktop Processors* | |
* Refer to www.asus.com for CPU support | |
list. | |
Chipset | AMD X670 |
Memory | 4 x DIMM, Max. 128GB, DDR5 |
6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC and Non-ECC,Un-buffered Memory* | |
Dual Channel Memory Architecture | |
Supports AMD EXTended Profiles for Overclocking (EXPO™) | |
OptiMem II | |
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for | |
memory support list. | |
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function. | |
Graphics | 2 x USB4® ports support USB Type-C® display outputs* |
* VGA resolution support depends on processors' or graphic cards' resolution. | |

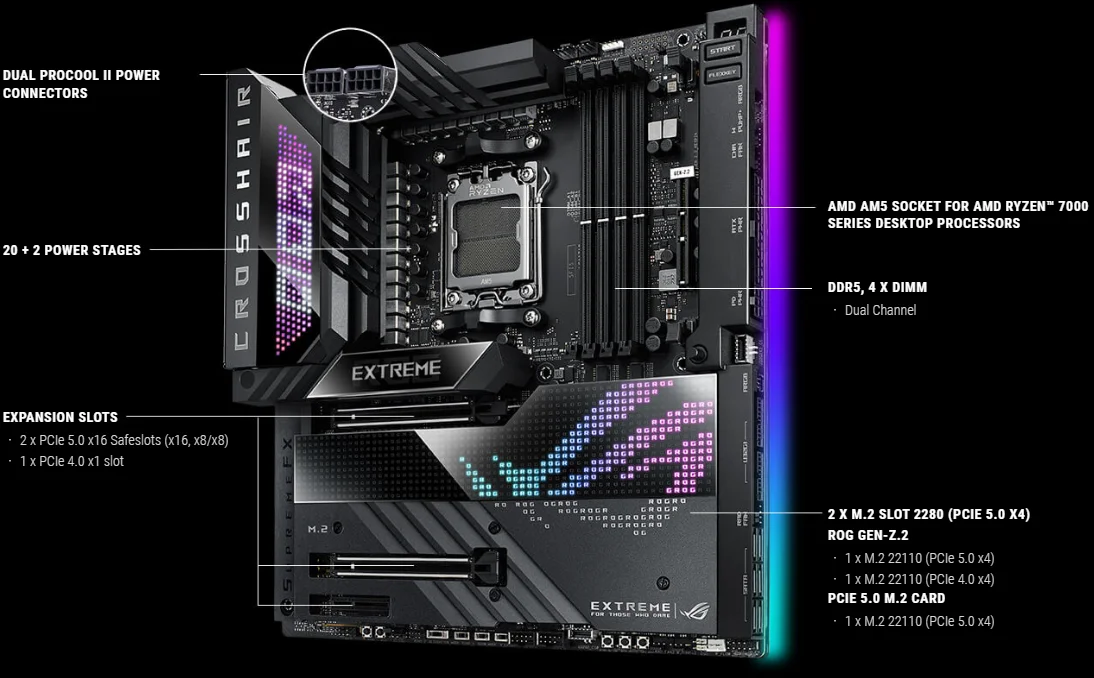

Expansion Slots | AMD Ryzen™ 7000 Series Desktop Processors |
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)* | |
AMD X670 Chipset | |
1 x PCIe 4.0 x4 slot | |
*When the PCIe 5.0 M.2 card is installed on the PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only. | |
*When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4. | |
Storage | Total supports 5 x M.2 slots and 6 x SATA 6Gb/s ports* |
AMD Ryzen™ 7000 Series Desktop Processors | |
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** | |
GEN-Z.2_1 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*** | |
PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)*** | |
AMD X670 Chipset | |
GEN-Z.2_2 slot (Key M) via ROG GEN-Z.2, type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
6 x SATA 6Gb/s ports | |
*AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
** When M.2_2 is enabled, PCIEX16(G5)_1 will run x8 and PCIEX16(G5)_2 will run x4. | |
*** Performance may very depending on the SSD’s firmware version, the system hardware and system configuration, for moreinformation refer to www.asus.com for device support list. | |
Ethernet | 1 x Intel® 2.5Gb Ethernet |
1 x Marvell® AQtion 10Gb Ethernet | |
ASUS LANGuard | |
Wireless & Bluetooth | Wi-Fi 6E |
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
Supports 2.4/5/6GHz frequency band* | |
Bluetooth v5.3** | |
* WiFi 6E 6GHz regulatory may vary between countries. | |
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
USB | Rear USB (Total 12 ports) |
2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®) | |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®) | |
Front USB (Total 10 ports) | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C® with up to 60W PD/QC4+)* | |
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | |
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
* To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported. | |
Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
_ Impedance sense for front and rear headphone outputs | |
_ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
_ High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
_ Supports up to 32-Bit/384 kHz playback" | |
Audio Features | |
_ SupremeFX Shielding Technology | |
_ ESS® ES9218 QUAD DAC | |
_ LED-illuminated audio jacks | |
_ Rear optical S/PDIF out port | |
_ Premium audio capacitors | |
_ Audio cover | |

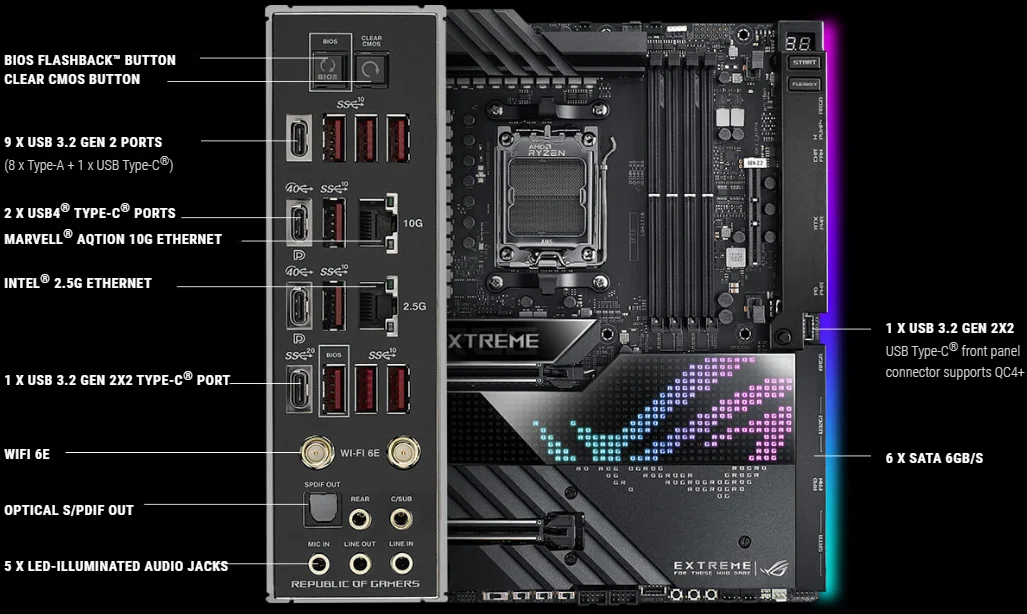

Back Panel I/O Ports | 2 x USB4® with Intel® JHL8540 USB4® controller ports (2 x USB Type-C®) |
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) | |
9 x USB 3.2 Gen 2 ports (8 x Type-A + 1 x USB Type-C®) | |
1 x Wi-Fi Module | |
1 x Intel® 2.5Gb Ethernet port | |
1 x Marvell® AQtion 10Gb Ethernet port | |
5 x LED-illuminated audio jacks* | |
1 x Optical S/PDIF out port | |
1 x BIOS FlashBack™ button | |
1 x Clear CMOS button | |
*The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audiooutput device to the audio jack on the front panel of your chassis. | |
Internal I/O Connectors | Fan and Cooling related |
1 x 4-pin CPU Fan header | |
1 x 4-pin CPU OPT Fan header | |
2 x 4-pin Chassis Fan headers | |
2 x 4-pin Radiator Fan headers | |
2 x W_PUMP+ headers | |
1 x WB_SENSOR header | |
1 x 2-pin Water In header | |
1 x 2-pin Water Out header | |
1 x 3-pin Water Flow header | |
Power related | |
1 x 24-pin Main Power connector | |
2 x 8-pin +12V Power connector | |
1 x 6-pin PCIe Graphics Card connector | |
Storage related | |
2 x M.2 slots (Key M) | |
1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M) | |
6 x SATA 6Gb/s ports | |
USB | |
1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) | |
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) | |
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
Miscellaneous | |
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers | |
1 x Addressable Gen 2 header | |
1 x Alteration Mode Switch | |
1 x Aura RGB header | |
1 x BIOS Switch button | |
2 x BCLK button | |
1 x FlexKey button | |
1 x Front Panel Audio header (AAFP) | |
1 x LN2 Mode jumper | |
1 x Osc sence header | |
12 x ProbeIt Measurement Points | |
1 x ReTry button | |
1 x RSVD switch | |
1 x RSVD header | |
1 x Safe Boot button | |
1 x Slow Mode switch | |
1 x Start button | |
1 x V_Latch switch | |
1 x 10-1 pin System Panel header | |
1 x Thermal Sensor header | |
Special Features | Extreme OC Kit |
_ FlexKey button | |
_ LN2 Mode | |
_ ProbeIt | |
_ ReTry button | |
_ Safe boot button | |
_ Start button | |
_ Slow Mode | |
Extreme Engine Digi+ | |
_ 10K Black Metallic Capacitors | |
_ MicroFine Alloy Choke | |

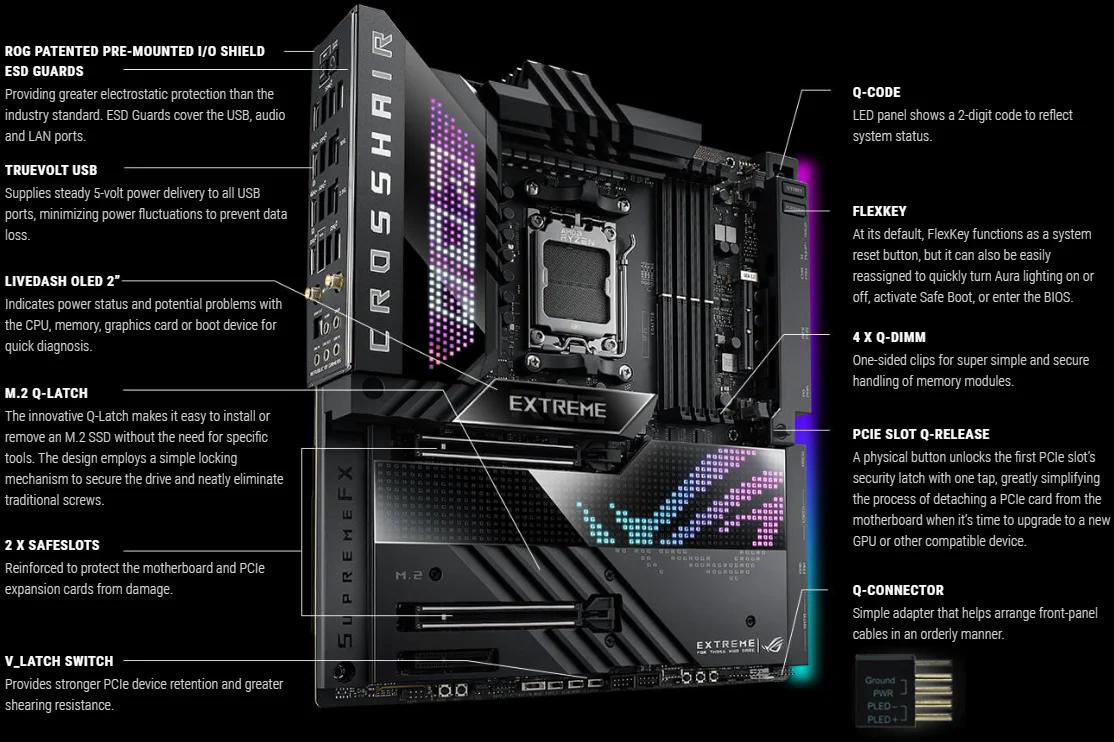

ASUS Q-Design | |
_ M.2 Q-Latch | |
_ PCIe Slot Q-Release | |
_ Q-Code | |
_ Q-Connector | |
_ Q-DIMM | |
_ Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
_ Q-Slot | |

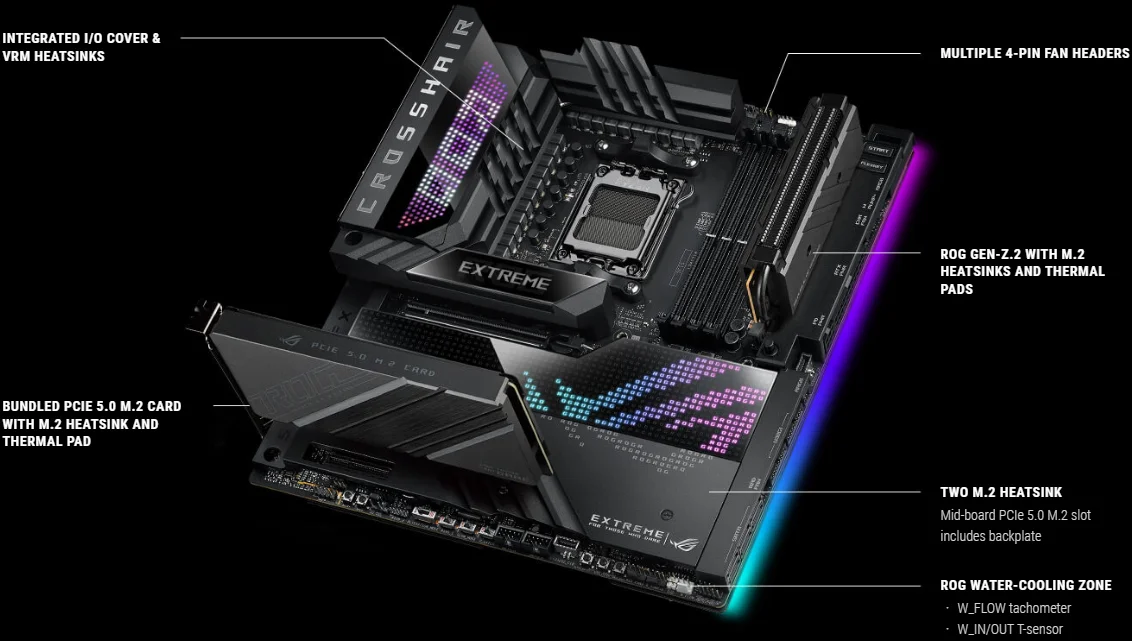

ASUS Thermal Solution | |
_ M.2 heatsink backplate | |
_ M.2 heatsink | |
_ Steel backplate | |
_ VRM heatsink design | |
ASUS EZ DIY | |
_ BIOS FlashBack™ button | |
_ Clear CMOS button | |
_ ProCool II | |
_ Pre-mounted I/O shield | |
_ SafeSlot | |
_ SafeDIMM | |
Aura Sync | |
_ ROG Aura Sync backplate | |
_ Aura RGB header | |
_ Addressable Gen 2 headers | |
Dual BIOS | |
OLED 2" | |
Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support | |
_ Support: up to 60W charging* | |
_ Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
_ Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS | |
* To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W. | |
Software Features | ROG Exclusive Software |
_ GameFirst VI | |
_ ROG CPU-Z | |
_ ROG True Voltician | |
_ Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion | |
_ Sonic Radar III | |
_ DTS® Sound Unbound | |
_ BullGuard Internet Security (1-year full version) | |
ASUS Exclusive Software | |
Armoury Crate | |
_ AIDA64 Extreme (1 year full version) | |
_ Aura Creator | |
_ Aura Sync | |
_ Fan Xpert 4 with AI Cooling II | |
_ Power Saving | |
_ Two-Way AI Noise Cancelation | |
_ AniMe MatrixTM LED Display | |
_ OLED Display | |
AI Suite 3 | |
_ TPU | |
_ DIGI+ Power Control | |
_ Turbo app | |
_ PC Cleaner | |
MyAsus | |
WinRAR | |
UEFI BIOS | |
ASUS EZ DIY | |
_ ASUS CrashFree BIOS 3 | |
_ ASUS EZ Flash 3 | |
_ ASUS UEFI BIOS EZ Mode | |
BIOS | 2 x 256 Mb Flash ROM, UEFI AMI BIOS |
Manageability | WOL by PME, PXE |
Accessories | Cables |
1 x 1-to-3 ARGB splitter cable | |
1 x 1-to-2 ARGB splitter cable | |
2 x 1-to-4 fan splitter cable | |
1 x RGB extension cable | |
3 x ROG weave SATA 6G cables pack | |
1 x 3-in-1 Thermistor cables pack | |
ROG Fan Controller | |
1 x ROG Fan Controller | |
1 x Fan EXT PWR cable | |
1 x ARGB input cable | |
1 x USB input cable | |
1 x ROG Fan Controller 3M Mounting tape package | |
1 x Fan Controller manual | |
ROG GEN.2 Card with Heatsink | |
1 x ROG GEN-Z.2 with heatsink | |
1 x M.2 pad package for ROG GEN-Z.2 | |
2 x M.2 screw package for ROG GEN-Z.2 | |
PCIe 5.0 M.2 Card with Heatsink | |
1 x PCIe 5.0 M.2 Card with heatsink | |
1 x M.2 screw package for ROG PCIe 5.0 M.2 Card | |
ROG True Voltician | |
1 x ROG True Voltician | |
4 x cables for ROG True Voltician | |
Additional Cooling Kit | |
1 x Thermal pad for M.2 | |
Miscellaneous | |
1 x ASUS Wi-Fi moving antennas | |
1 x Rubber Package for M.2 backplate | |
1 x Q-connector | |
2 x M.2 Q-Latch packages for M.2 backplate | |
1 x ROG Graphics card holder | |
1 x ROG key chain | |
1 x ROG logo plate sticker | |
1 x ROG screwdriver | |
1 x ROG stickers | |
1 x ROG thank you card | |
Installation Media | |
1 x USB drive with utilities and drivers | |
Documentation | |
1 x User guide | |
Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor | EATX Form Factor |
12 inch x 10.9 inch ( 30.5 cm x 27.7 cm ) |
