Specification | ||
Dimension | Q107S-S01: 134 x 128 x 38mm Q107S-S02: 134 x 128 x 45mm Q107S-S07: 156 x 127 x 37mm Q107S-S08: 155 x 127 x 48mm | |

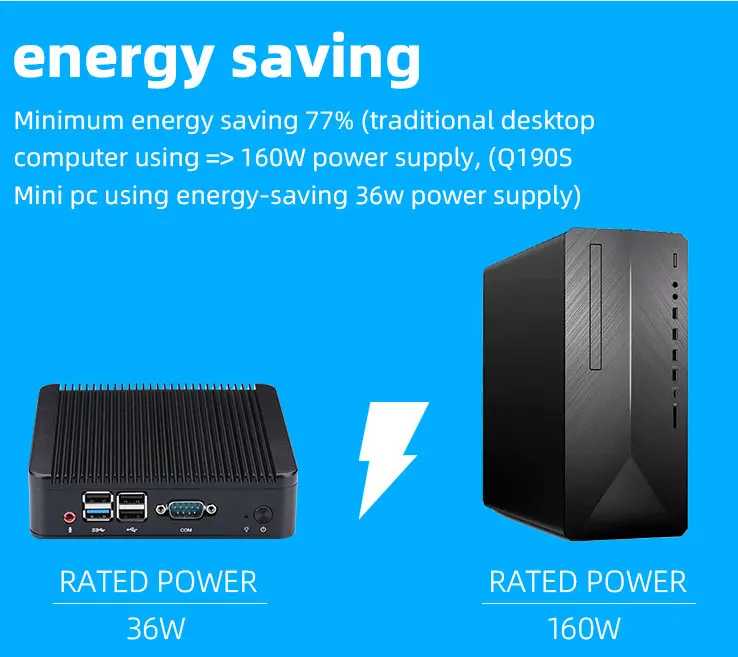

Power Consumption | TDP 10W | |
Onboard CPU | Intel Celeron 1007U 1.5GHz 2M Cache | |
Memory | Support DDR3L SO-DIMM Laptop 1.35V Ram 2GB / 4GB / 8GB Options | |
Chipset | By CPU | |
Hard Disk | mSATA SSD 32G/64G/128G/256G | |
Onboard VGA | Intel HD Graphics | |
Onboard LAN | 2 x Realtek Gigabit LAN | |
Audio Solution | Realtek ALC662 HD Audio | |

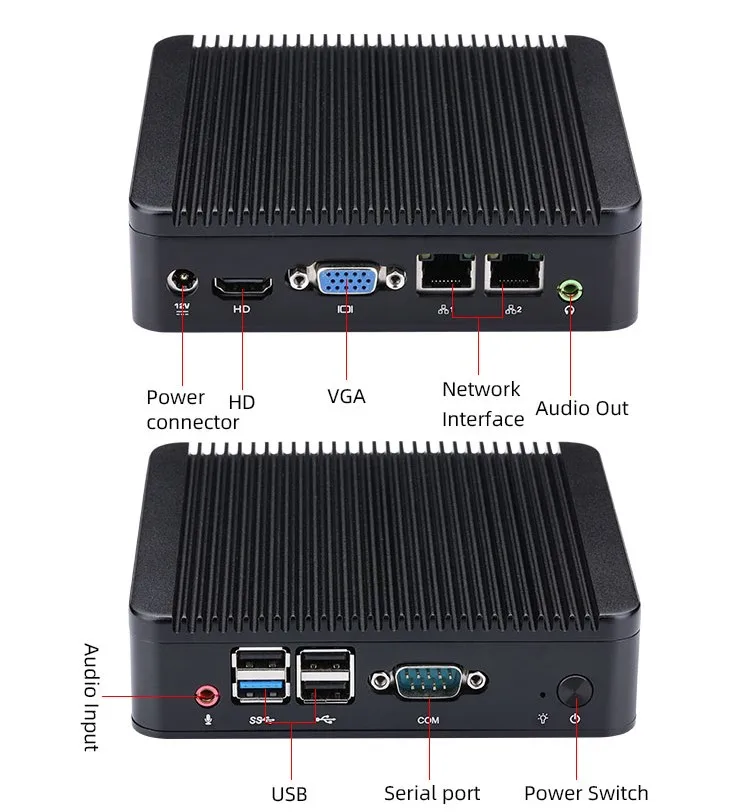

Front-Panel Connectors | • Power switch botton (Power LED) • HDD LED • 1 x USB 3.0 port • 3 x USB 2.0 Ports • 1 x Microphone Port • 1 x Serial port | |

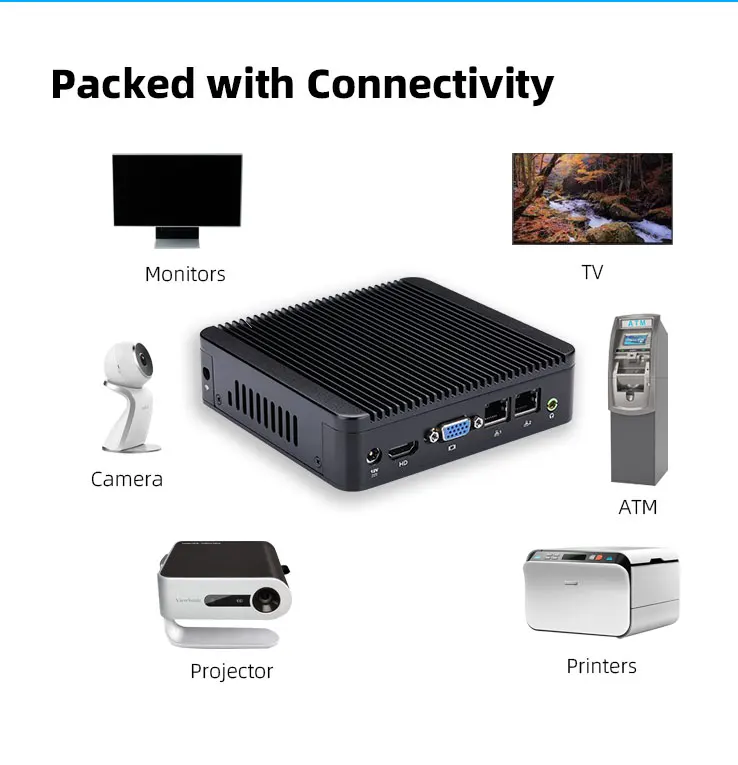

Back-Panel Connectors | • 1 × DC 12V input • 2 × RJ-45 Ports • 1 × HD Port • 1 × VGA Port • 1 × Speaker Port | |
Operating System | Support Windows 7 /Windows 8 / Windows 10 /Linux Ubuntu etc. |
