Adopt high-performance digital signal processor, precise 40 bit floating point math operation.
24bit/48KHz high performance ADC/DAC, 114dB typ. dynamic range. Pay attention to every detail of the sound you pay attention to, and show the rich sound connotation.
12 signal inputs (8 MIC inputs, 1 stereo analog input, 1 stereo USB/Bluetooth/PC sound card input
8 signal outputs (main output L/R, 4 AUX, 1 stereo recording, Headphone)
4.3-inch high-brightness true-color TFT display with smart capacitive touch screen
It adopts 100mm stable, durable, high-speed electric fader, which is easy to operate and feel good.
USB Media playback, supports MP3, AAC, WAV, AIFF, APE or FLAC file formats. Use an external U disk to record directly, without an external computer. In addition, you can also use a PC sound card to record.
USB interface Bluetooth, plug and play, connect your mobile phone's Bluetooth device at any time to realize wireless music playback.
Practical howling suppression function, each microphone input channel can add howling suppression function
The built-in DSP digital effectors is equipped with various effect modes commonly used in vocals and musical instruments to choose at will.
The input channel has analog gain, 4-band PEQ, high/low pass filter, noise gate, compressor, polarity reversal, feedback suppressor, independent 48V phantom power supply, etc.
The output channel has 4-band PEQ, high/low pass filter, compressor, delayer.
Channel parameter copy function, quickly copy data to each channel
Channel parameter copy function, quickly copy data to each channel.

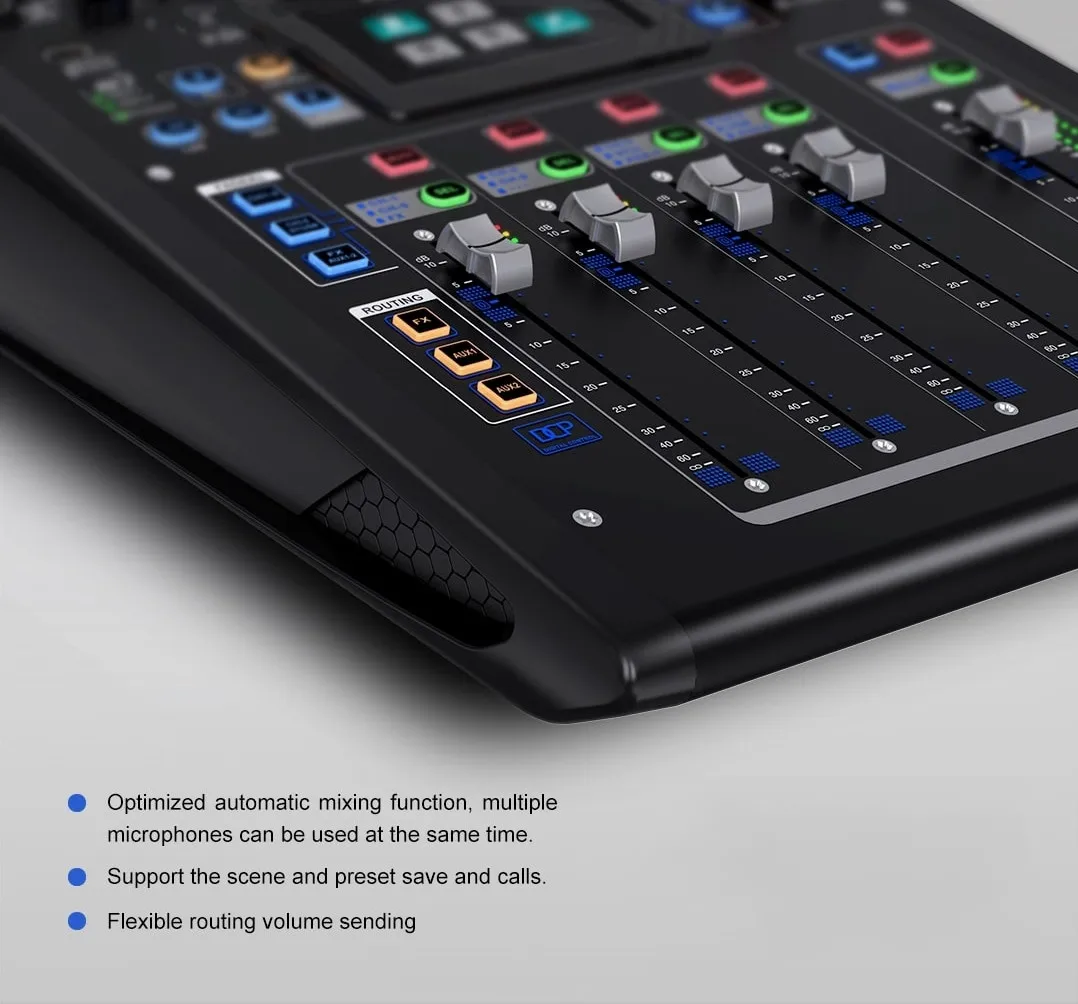

Optimized MICs automatic mixing function, multiple MICs can be used at the same time, intelligent volume distribution management.
Provides 6 dedicated shortcut buttons for scene modes, which can be used to quickly recall new scenes with one key when needed.
Support 100 sets of channel presets, which can be exported and imported to/from USB storage for easy data backup
The UDP control command open to the third party can easily realize the remote central control function.
Support multi-system platform APP control (IOS Apple, Android, windows)
The ISUeasyTM remote firmware upgrade function supports a comprehensive upgrade of the system (including the MCU program) by booting the upgrade package data from the USB port, ensuring that the TF digital mixer you have purchased can be easily and completely upgraded to the latest state.
Anti- misoperation , with one-key lock function.
