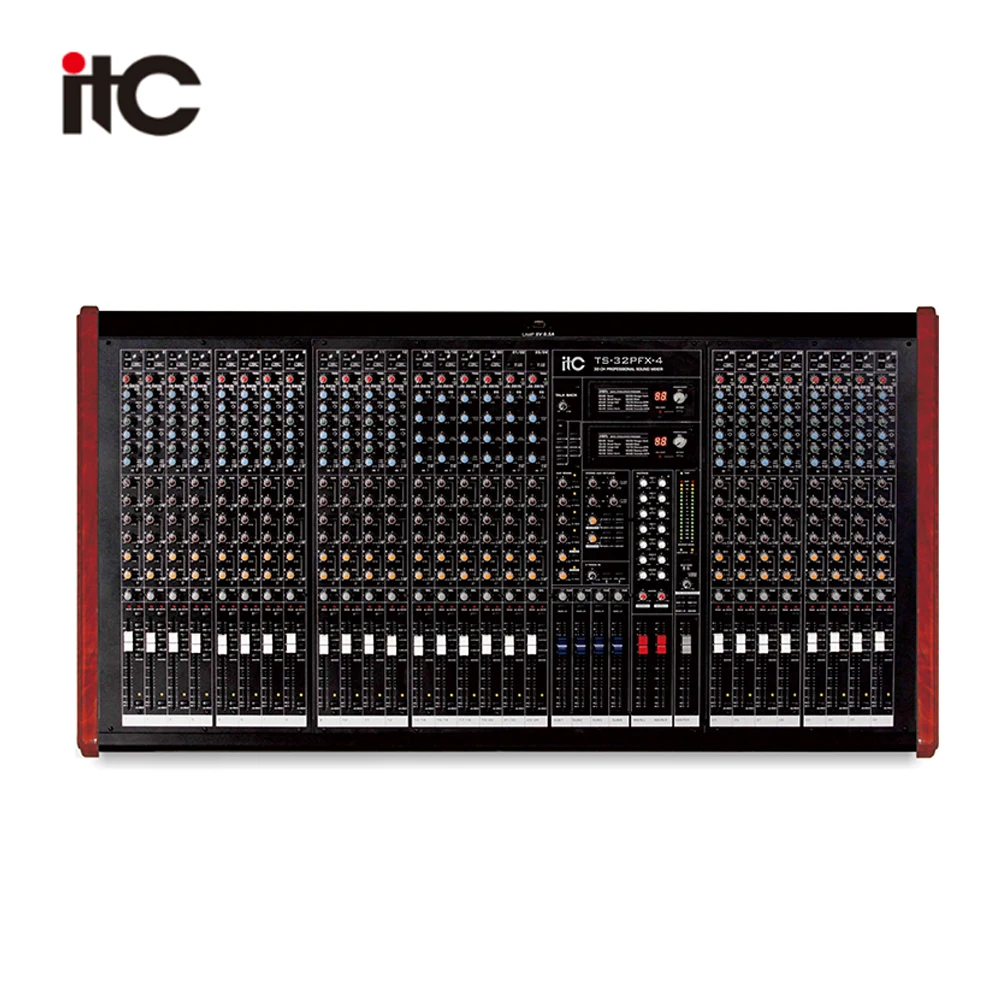

Itc Hot Sell Digital Digital Mixer 32 Channel Digital Mixer Console Music Audio Dj Mixer Console For Professional Sound System
(0
reviews)
Estimate Shipping Time:
3 Days
Sold by:
Inhouse product
Inhouse product
Price:
$2,200.00
/Pc
Refund:
Share:
Top Selling Products
-
G2000 Women Belted Dress
$53.90
Products Description
Large professional mixer adopts ultra-low noise discrete microphone preamplifier and +48V phantom power; 26 channels of mono, 6 channels of stereo channel inputs, dual effects and four grouping functions. Applicable to all kinds of performance venues, various conference venues, schools, intelligent building, industrial and mining enterprises and personal use.
Why you choose us?
* With 26 balanced gold-plated XLR + 26 6.3mm balanced MIC input. Microphone input interface with 48V phantom power.
* With 1 pair of Stereo monitor output ports and 1 headphone output port.
* High precision carbon film fader with 33 60mm strokes.
* Use high quality audio connectors.
* With a USB port and built-in MP3 player, it can play music through external U disk.
* Built-in USB sound card is connected to the computer for music playback and sound recording.
* Built-in 24-bit DSP effects can provide 100 preset effects.
* With high and low impedance switching function, pressure limiter function and 4-channel grouping function.
* Provide a USB power supply interface to connect USB lights.
Specification
Model | TS-32PFX-4 |
Microphone inputs | 18 channels (16 XLR interfaces, 2 XLR interfaces / 6.5 single plug stereo mixing interface) |
Line inputs | 2 stereo channels, RCA input interface |
Stereo input channels | 2 sets (4 channels of mono), 4 channels of RCA inputs |
Output channels | 10 outputs (4 channels, 6.5 single plug interface output; 4 channels auxiliary, 6.5 single plug interface output; |
1 channel stereo monitor, 6.5 single plug interface output, 1 channel main output XLR/ 6.5 single plug interface) | |
Monitor | A set of stereo monitor output / one headphone monitor output, single plug interface |
USB interface | U disk playback and recording. WAV format is supported. |
Fader | 23 60mm stroke high precision carbon film faders |
Audio processing | 3 kinds of audio processing (8 compressors, 3 equalizers (with intermediate frequency sweep) 16 and 4 equalizers 4) |
FX effect | 24-bit DSP effects, 100 preset effects |
USB sound card port | Support computer recording/playback, playback via CH21/22 channel |
Frequency response | 20Hz-22kHz, ±3dB |
Distortion at 1kHz | Mix to device interface (+30dB overall gain, +20dBu output) <0.009%, mix to mix (+30dB overall gain, +20dBu output) <0.03% |
Crosstalk at 1 kHz | Channel to channel >-80dB, mix to mix >-80dB, channel to mix >-80dB |
Input impedance | MIC: 2kΩ balanced, line: 10kΩ balanced |
Output impedance | All line outputs, 120Ω imbalanced |
Power supply | Built-in AC 100-240V 50/60Hz switching power supply |
Size (L × W × H) (mm) | 718×431×81 |
Net weight | 18.5kg |
